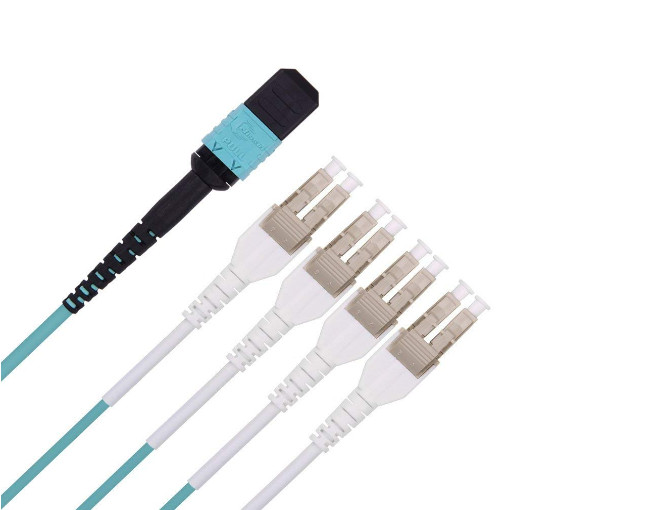

12 cores MPO/MTP Trunk Cable Assemblies/MPO/MTP patch cord,
OM2/OM3/OM4 cable
Description:
Fiber optic connector : LC,ST, FC, SC, MTRJ, DIN, D4, E2000, MPO
Ferrule Interface type: APC ,PC, UPC
Fiber cores: Simplex, duplex
Fiber type; multimode(50/125)/(62.5/125) ,Singlemode(9/125)
Fiber diameter(mm): Φ 0.9, φ 2.0, Φ 3.0
Cable length; customize
Feature:
Connector End face: MPO end face geometry requirements:
EN50377-15-1
Polishing Quality:: Polished end-face quality: IEC61300-3-35
Our MPO patch cables are designed for data center solutions
supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the
data center standards EN50173-5 and
ISO/IEC 24764.
MPO Detail:
MPO patch cables are used to make the interconnections between the
MPO cassettes or connections to active equipment with MPO/MTP
interface.
In cases where an MPO patch cord is connected (through an MPO
coupler) to another MPO patch cable, one of the two MPO connectors
must be male (equipped with pins).
MPO patch cables are available in 3 different wire map
configurations: Straight, Total Flipped or Pair Flipped
MPO patch cables are available in multi-mode and single-mode fiber
cable.
Applications
Performance of Assemblies MTP / MPO Termination:
| Type/Performance | Singlemode(APC polish) | Multimode(PC / Flat Polish) |
| Standard | Elite Low Loss | Standard | Elite Low Loss |
| Maximum Insertion Loss | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.60dB | ≤ 0.35dB |
| Return Loss | ≥ 50dB | N/A |
| Operating Temperature | -40°C to 80°C | 40°C to 80°C |
| Test Wavelength | 1310nm | 850nm |
MTP products’ Standard:
Ø Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5);
Telcordia GR-1435-CORE compliant
Ø Structured cabling per TIA-568-C
Ø Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
Ø InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
| Connector type | Testing items | Min | Max |
| MTP PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | -0.2 | 0.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Max. Core Dip(nm) | -300 | 300 |
| Fiber height(nm) | -300 | 300 |
| ROC_X(abs)(mm) | 1000 | 3000 |
| MTP APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | 7.8 | 8.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Fiber height(nm) | | |
