Description :

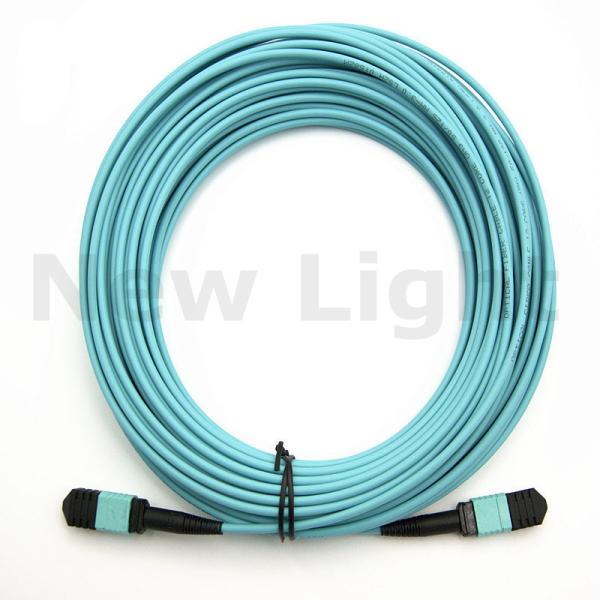

50 meters MTP - MTP MPO MTP cable single mode optical fiber jumping
cable
Features
♦ High Performance in IL & RL
♦ 4,8,12 and 24 fiber connector terminations and assemblies
♦ Designed for low loss and standard loss SM and MM applications
♦ Economical solution for mass-termination of fiber
♦ Suitable for MPO/MTP application
♦ Ruggedized round cable, oval cable and bare ribbon options
available
♦ Color coded housings available to differentiate fiber type, polish
type and/or connector grade
Associated Standards:
♦ Meets IEC Standard 61754-7& JIS C5982
♦ Structured cabling per TIA-568-C
♦ Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
♦ Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Advantages
- Stable high quality ensured by imported production and test
equipments:EXFO IL&RL Tester / Domaille Grinding Machine /
SENKO 3D Interferometer
- Pretty high return loss: ≥45dB
- 5-year Experience R&D Team
- Customized Production and Service
- 40G/100G Data Center Solution
Application
- Data center infrastructure
- Storage area network
- Emerging 40 & 100Gps Protocols
- Parallel optics
- Enterprise network cabling systerm
Technical Parameter
| Item | Technical Parameters |
| Connector | MPO (F or M) | MPO (F or M) |
| Operation Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Insertion Loss | SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
| Return Loss | SM:≥60dB; MM:≥35dB |
| The MPO end type | Male: with guide pin; Female: without guide pin |
| Fiber count | 8,12&24 MT fiber |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable |
.
Ordering options
| Boot (cable size) | Boot Color | Fiber Type | Cable number | Ferrule | Length |
0.9mm 2.0mm 3.0mm | Black Biege Blue Gray White Yellow | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber | PC APC | Customized |

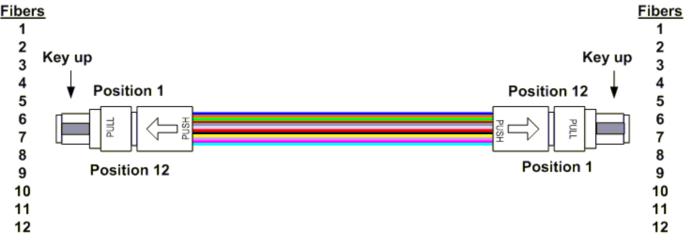

When a patch cord is constructed in a key-up/key-up configuration,
the fiber arrangement on one connector
is mirrored about the vertical axis on the other connector. For
example, on connector A the blue fiber is to the
left with the key up, while on connector B the blue fiber is to the
right with the key up. Signals input on the left
side of connector A will be output on the right side of connector
B.
Key-up/Key-up of GEZHI Patch cords Mirror Signals About the
Vertical Axis
GEZHI Assembly Structure Illustration:
It have male and female connector :
Male with PIN , female without PIN
Female connector Male connector
