Description

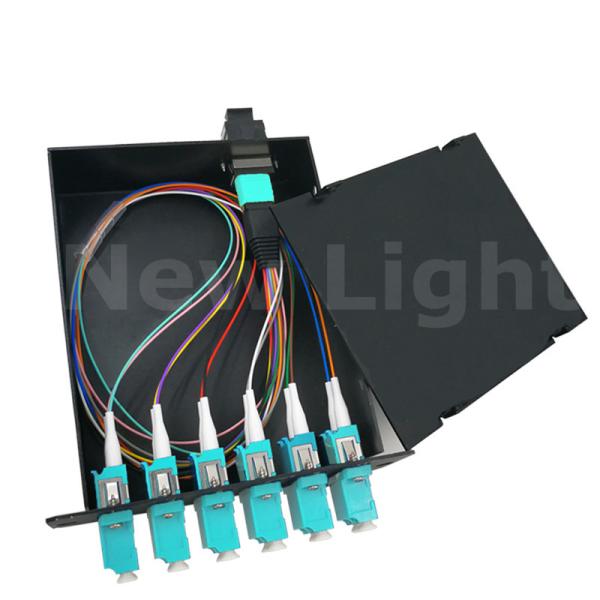

MPO / MTP male - LC 12 cores fiber optical distribution frame multi
mode
The MPO / MTP Cassette Modules provide secure transition between
MPO / MTP and LC or SC discrete connectors. They provide a quick,
reliably high performance and efficient way to deploy up to 24 LC
or 12 SC fiber ports in a single module. The Modules can be mounted
in 1U or 4U 19” multi slot chassis. Theyare available in Multi-mode
and Single-mode cable.
Application
Feature
1. 19" Standard rack mount
2. Material: SPCC cold rolled steel
3. Designed by full modulization:
A. Unit body have the funsion of optical fiber fusion, tray storing
and distribution
B. the integrated fusion and distribution tray can be singly taken
out to meet the demands for operation.
4. Optical cable, pigtail fiber and patch cords can be clearly
managed,
5. Easy for installation of inlay,convenient to expand
capacity,obliquity of adapter is 30 degree.
6. Ensure the bend radius of patch cord and avoid laser burning
eyes.
7. FC, SC port is available for the integrated fusion and
distribution tray
8. Two sides accommodate cable entry and exit
Specification
1. Under the general air pressure, 500VDC,insulation
resistance≥1000MΩ;
2. The high voltage protection can undertake 3000VDC,no
spark-through and flashover within 1 minutes.
3. Technical and quality grade reaches the ISO/IEC11801
requirement.
4. Working temperature-20°C~+55°C;
5. Working humidity≤95% (30°C);
6. Working atmospheric pressure 70~106KPa
| Environmental temperature: | -20 - 80°C |
| Relative humidity: | <85%(when the temperature is below 30°C) |
| Atmosphere pressure: | 70~106Kpa |
| Insulating resistance: | >2×104 MΩ/500VDC |
| Voltage-resistance strength: | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over. |
