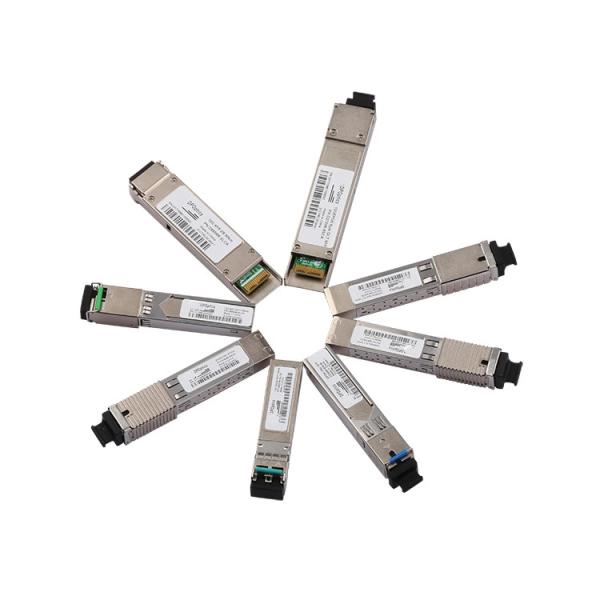

1.25G 10 km SFP transceivers fiber optic transceiver for optical transmission systems

1. Description

The sfp tranceivers are high performance, cost effective modules.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode and MCU control unit.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

2. Features

Up to 4.25g data-rate

Transmission distance up to 120km

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitoring:Internal Calibrationor External Calibration

Compatible with SONET OC-24-LR-1

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Standard : 0 to +70°C

Industrial : -40 to +85°C

3. Spcifications

• for multi-mode fiber, with black or beigeextraction lever
  • SX - 850 nm, for a maximum of 550 m at 1.25 Gbit/s (Gigabit Ethernet) or 150m at 4.25 Gbit/s (Fibre Channel)
• for single-mode fiber, with blueextraction lever
  • LX - 1310 nm, for distances up to 10 km
  • EX - 1310 nm, for distances up to 40 km
  • ZX - 1550 nm, for distances up to 80 km
  • EZX - 1550 nm, for distanc single fiber sfp es up to 120 km
  • BX - 1490 nm/1310 nm
  • 1550 nm 40 km (XD), 80 km (ZX), 120 km (EX or EZX)
  • SFSW – Single Fiber Single Wavelength transceivers, for bi-directional traffic on a single fiber.
  • CWDM and DWDMtransceivers at various wavelengths achieving various maximum distancesfor copper twisted pair cabling
• for copper twisted pair cabling
  • 1000BASE-T - these modules incorporate significant interface circuitry and can only be used for Gigabit Ethernet

4. Product list

sfp tranceivers

APPLICATIONS

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

Product Descripition


TRANSCOM’S TS-SF-T12-02-2 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-Tphysical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The TS-SF-T12-02-2 is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).
