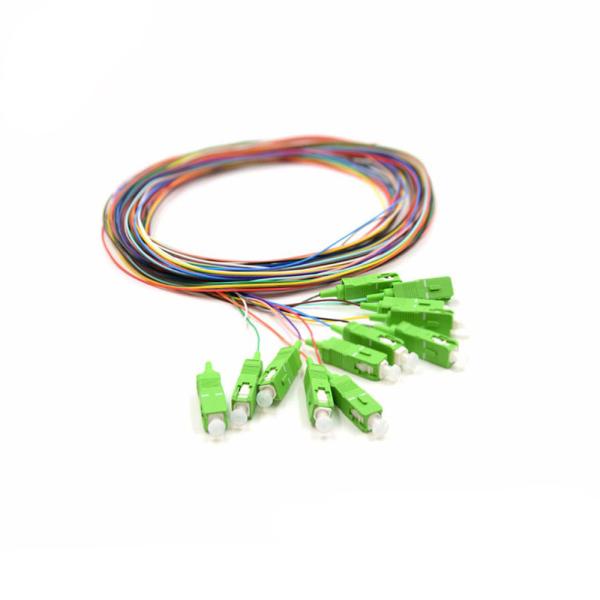

SC / APC optic fiber pigtail 12 color 0.9 mm 2 M optic fiber
jumping cable
12 fibers/Colored pigtail
It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets
Telcordia GR-326 Core and ROHS requirements.
The connector could be SC, FC, LC, ST, MU, and E2000etc.
The cable could be G652D, G657A1, G657A2 ,G655, OM1, OM2, OM3, OM4
etc.
The cable size could be 0.25,0.9,
There are 12 colors for your option.
Both 250um and 900um is same colored, easy to identify and make
right splice.
Tight buffer, semi-tight buffer. Loose buffer are available.
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length
Products info
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | SC/UPC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Connector | | UPC End-face |
| SC | 10~25 mm |
| Apex Offset | ≤50 um |
| Fiber Spherical Height | +/- 50 nm |
| Angular Offset | 8°± 0.2° |
Company introduction
New Light Optics Technology Limited specialized in the Optical
communication products R & D, manufacture,sales and service as
high-tech company.Our factory was established in 2011 and with 6
years OEM and manufacture experience for customer all over the
world.
Our product line include: Patch Cord/Pigtails,Patch Cord
Cables,MTP/MPO Patch Cord,Fiber Optical adapter, attenuator, Fiber
optical connector... Etc. Our products widely used in
Telecommunication,Fiber optical CATV, digital internet fiber
transmit,data base station,etc.
Company have high tech technology, professional R & D team,
advanced productionequipment,sophisticate skill engineers. And high
quality control system,our products offer to customers to
USA,European,Brazil,Middle East,and Asia more than 60 countries and
areas.Products with high reputation and feedback from all
customers!
Please contact us if any we can support and cooperate together!
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity
)after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea
(according to your requirements ).
