OEM ODM OM3 12 Core PVC Fiber Optic Cable MPO To MPO Male Aqua Fan
Out
OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC
Cable
There are 6 pcs 12 core MPO conectory on each side of the patch
cord .Total have 12 MPO connector in this patch cord .and the fiber
count is 72 core total . this is a kinds of fan out patch cord .
The diameter of each fan out cable normal is 3.0mm .but also can be
customized into 3.6 / 4.4/5.0mm , it is according to your
requirements .
The fan out length can be 0.5meter or 1 meter or other length
according to your requirements , before you order ,should let us
know the length .
OM3 multi mode cable color normal is aqua . if you need customize
it into other color , the MOQ of total quantity should be over 1000
meters , otherwise it is expensive and difficult to produced by
machine .
MPO connectors are well-suited for high-density, high-traffic
applications including data centers and central offices.
We can offer 4, 8, 12, 16,24 and 32-fiber MPO assemblies, with
ribbon, flat and round cable structure options. We can also provide
MPO assemblies with IP (waterproof) connectivity.
Applications
1. Data communication network
2. Optical system access network
3. Storage area network fiber channel
4. High density architectures
Features and benefits
1. Utilize MPO/MTP connectors
2. Rapid deployment
3. Factory terminated
4. 100% tested (test data supplied)
5. High-density cable
6. Optimized performance
7. Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
8. MPO connector complies with IEC-61754-7 and EIA/TIA-604-5
Technical Parameter
| products name | OM3 - 300 12 Core MPO to MPO male aqua fan out Fiber Optic PVC
Cable |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | ( can be customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| core type | 50/125um |
| connector type | male |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |

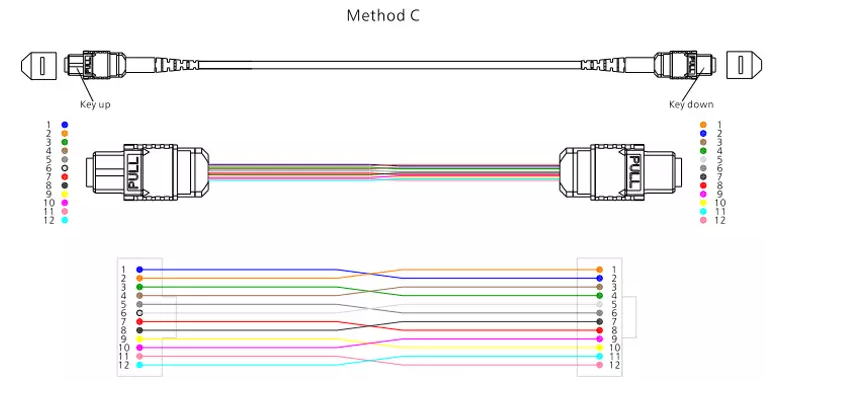

Method C
MORE connector for your reference
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ /
E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other
diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core
/ 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150
/ OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B
type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber
)
