Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector

    Buy cheap Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector from wholesalers

    Buy cheap Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector from wholesalers
    • Buy cheap Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector from wholesalers
    • Buy cheap Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector from wholesalers

    Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector

    Ask Lasest Price
    Brand Name : New Light
    Model Number : SC APC
    Certification : ISO ,ROSH
    Price : 1~30
    Payment Terms : L/C, T/T, Western Union, MoneyGram, paypal
    Supply Ability : 1000000
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector


    Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector


    It have ABS and mini steel tube type PLC , mini PLC size is very small ,and most of it are use in terminal box and distribution box .

    the connector can be customized according to your requirments .


    • PLC type: Steel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector
    • Low Insertion Loss, Uniform Power Splitting, Excellent Environmental & Mechanical Stability
    • Fiber Sensors, Long-Haul Telecommunications
    • Digital,Hybrid and AM-Video Systems CATV Systems
    • High Speed Local Area Networks

    Description:
    ---The Single mode Optic-fiber Tree and Star Couplers can couple the optical signals in the coupling area, and then re-distribute the light power.
    ---The key parameters include operating wavelength, bandwidth, and excess loss, coupling ratio, PDL and so on.


    Features:
    ---Low Insertion Loss
    ---Uniform Power Splitting
    ---Excellent Environmental & Mechanical Stability


    Applications:
    ---Long-Haul Telecommunications
    ---Digital,Hybrid and AM-Video Systems CATV Systems
    ---High Speed Local Area Networks
    ---Fiber Sensors


    Specifications:
    Fiber Type: Input:250μm Fiber/Output:250μm Fiber


    Operationg Wavelength :1260-1360nm/1460-1650nm

    Port Configuration:1X8 Max.

    Insertion Loss (dB):10.3 Uniformity(Max.) (dB):

    Operating Wavelength (nm):1310±40,1550±40,1585±40,or custom wavelength

    Technical Parameter

    products nameSteel Tube Input 250μM Fiber Optic PLC Splitterr With 1 x 8 SC / APC Green Connector
    mode typesingle mode
    Port Configration1x8
    tube sizemini steel tube 60*7*4mm
    core typeG657A1
    cable diameter0.9mm
    input length1 meter ( can be customized diameter )
    output length1 meter ( can be customized according to your request )
    out jacket materialPVC ( can be PVC or LSZH )
    insertion loss≤ 10.3dB
    return loss≥50 dB
    wave length1260/1650nm
    core type9/125um
    connector typeSC APC
    connector colorGreen
    ferrule materialCeramic
    operater temperature-40~ +85℃
    cable printstandard print ( can customized )
    OEM/ODMacceptable
    warranty3 years after delivery
    Delivery time2-15 working days ( according to your quantity )


    Order information:


    1. PLC Splitter Type : ABS / Mini steel tube

    2.Input/Output Count : 1x2/4/6/8/16/32/64 . 2x2/4/8/16/32

    3.Input / output Connector Type: SC/LC/FC/ST

    4. Input / output length : 1meter /1.5meter

    5. connector mode type : UPC / APC

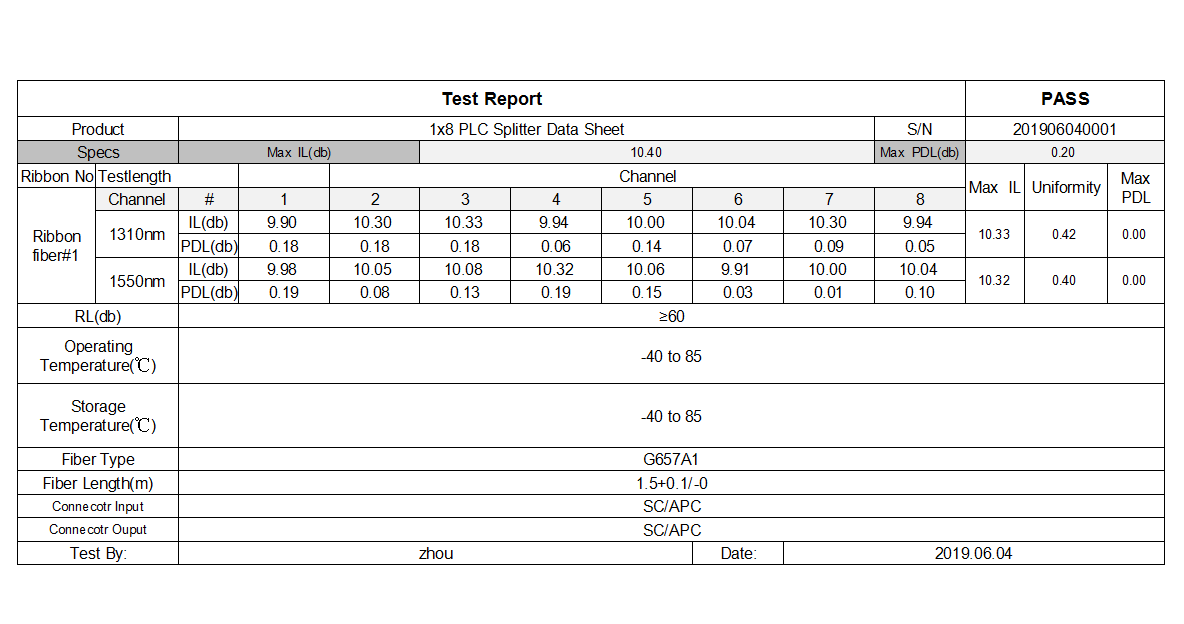

    test report


    ABS BOX type PLC
