Outdoor Fiber Optic Drop Cable 2 Core Black Color UV And Flame Resistant LSZH Material

Ask Lasest Price
Brand Name :	YOFC / Corning
Model Number :	2 core
Certification :	ISO ,ROSH
Price :	0.1~100
Payment Terms :	L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability :	1000000
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

Outdoor Fiber Optic Drop Cable 2 Core Black Color UV And Flame Resistant LSZH Material

FTTTH drop cable indoor 8 core single mode fiber optic cable PVC

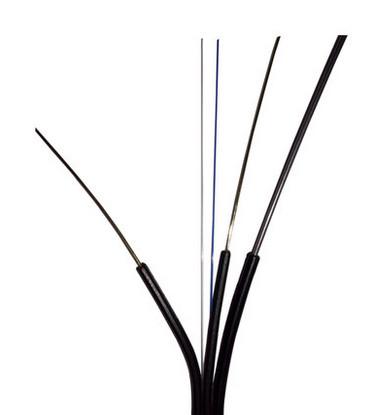

The optical fiber unit is positoned in the centre. Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath,the ftth cable is widely used in fiber to the home project ..

Characteristics:

1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2.Two paralled FRP strength members ensure good performance of crush resistance to protect the fiber;

3.Simple structure, light weight and high practicability;

4.Novel flute desigh ,easily strip and splice, simplify the installation and maintenance;

5.Low smoke, zero halogen and flame retardant sheath

Product Description

Cable construction details

Number of fiber	8core
Loose tube		material	PBT
		diameter	2.2(outer/inner)
Tube-filling		Tube filling compoun
Steel wire		size	0.8mm
		Number	2
Outer sheath		material	PE,HDPE,LDPE
		diameter	1.8±0.2mm

Cable Mechanical characteristic

core	Cable diameter	weight
1~8	8.0mm+-0.3mm	65kg/km+-10kg
Temperature range	-40+70(℃)	-----
Min Bending Radius(mm)	Long term	10D
Min Bending Radius(mm)	Short term	20D
Min allowable Tensile Strength(N)	Long term	1200
Min allowable Tensile Strength(N)	Short term	1500
Operation temperature	-40+70(℃)
Installation temperature	-20+60(℃)
Storage temprature	-40+70(℃)

Fiber type	Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3
Fiber type	Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)50/125-OM4 (8)50/125-OM5
Fiber brand	YOFC, Corning, OFS...
Connector type	SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Cord type	Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter	0.9mm, 2.0mm, 3.0mm....
Cable jacket	PVC, LSZH, OFNR, OFNP
Length(M)	0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
