    FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord

    Ask Lasest Price
    Brand Name : YOFC / Corning
    Model Number : single mode
    Certification : ISO ,ROSH
    Price : 0.1~100
    Payment Terms : L/C, T/T, Western Union, MoneyGram,paypal
    Supply Ability : 1000000
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

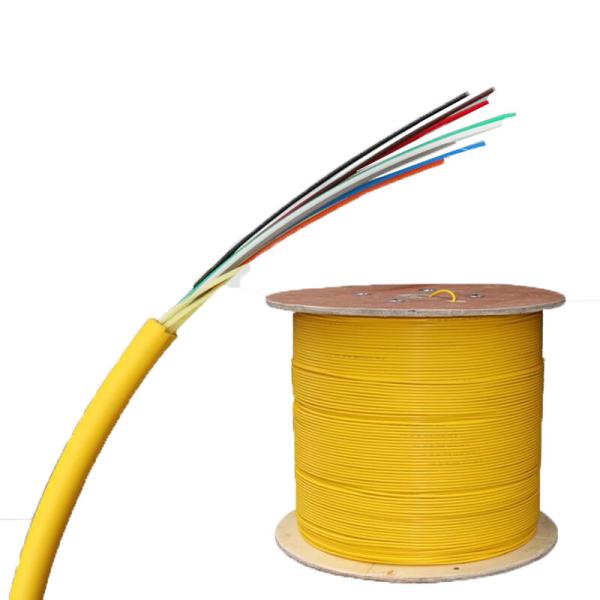

    FTTTH 8 Core Indoor Fiber Optic Cable PVC Single Mode Fiber Patch Cord


    FTTTH drop cable indoor 8 core single mode fiber optic cable PVC


    optic fiber cable have indoor and outdoor type . also have lots of type : armored cable . drop cable , pull far cable , GYXTW ,etc


    Also , the cable diameter from 0.9/2.0/3.0/3.6/4.8/7mm and core quantity : simplex , duplex ,4 core ,6 core ,8 core ,12core ,24 core ,48 core ,etc , it can be customized accroding to your requirements .


    Product Description

    Cable construction details


    Number of fiber8core
    Loose tubematerialPBT
    diameter2.2(outer/inner)
    Tube-fillingTube filling compoun
    Steel wiresize0.8mm
    Number2
    Outer sheathmaterialPE,HDPE,LDPE
    diameter1.8±0.2mm

    Cable Mechanical characteristic

    coreCable diameterweight
    1~88.0mm+-0.3mm65kg/km+-10kg
    Temperature range-40+70(℃)-----
    Min Bending Radius(mm)Long term10D
    Min Bending
    Radius(mm)    		Short term20D
    Min allowable
    Tensile Strength(N)    		Long term1200
    Min allowable
    Tensile Strength(N)    		Short term1500
    Operation temperature-40+70(℃)
    Installation temperature-20+60(℃)
    Storage temprature
    		-40+70(℃)

    Fiber typeSingle mode:
    (1)9/125-G652D
    (2)9/125-G655
    (3)9/125-G657A1,G657A2,G657B2,G657B3

    Multimode:
    (4)50/125-OM2
    (5)62.5/125-OM1
    (6)50/125-OM3
    (7)50/125-OM4

    (8)50/125-OM5

    Fiber brandYOFC, Corning, OFS...
    Connector typeSC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

    Cord typeSimplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
    Cable diameter0.9mm, 2.0mm, 3.0mm....
    Cable jacketPVC, LSZH, OFNR, OFNP
    Length(M)

    0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )
