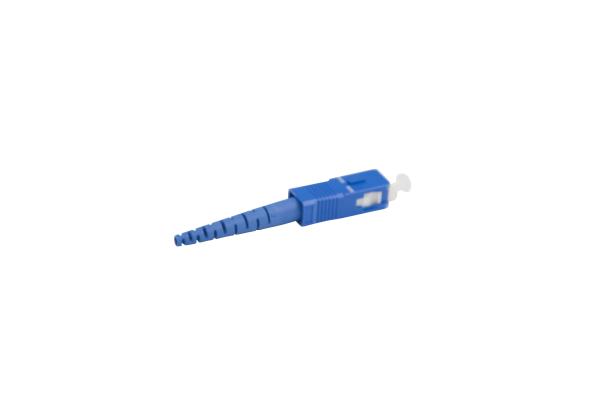

SC UPC single mode multi mode fiber connector with with ceramic
ferrule
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
- Singlemode Connector body is made of nickel plated metal, which
resist corrosion. They come with boots suitable for 0.9mm fiber
cable diameters.
- FC APC simplex singlemode connectors are suitable for Local Area
Networks (LANs), Wide Area Networks (WAN), Metropolitan Area
Networks (MAN) data center, business, premises, FTTH and commercial
applications. They are an ideal companion of Bulk Fiber Optic Cable
Singlemode
- singlemode Fiber FC Connector Epoxy-polish are especially designed
to provide low insertion loss and back reflection, along with high
precision and mechanical stability.
- Our male Fiber Connectors have pre-polished ceramic ferrule with a
slight spherical end-face. They also feature a screw-on collet that
ensures precise connections in high vibration environments.
- intermateability standards and conform to RoHS environmental
requirements.
Specification:
| Parameter | Unit | FC, SC, LC, ST connector |
| SM | MM |
| UPC | APC | UPC |
| Insertion loss | dB | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 | ≥35 |
| Exchangeability | dB | ≤0.2 |
| Mechanical Endurance | dB | ≤0.2 |
| Vibration | dB | ≤0.2 |
| Operating Temperature | °C | -40°C-75°C |
| Storage Temperature | °C | -45°C-85°C |
