Product Description:
Our Fiber Optic Transceiver comes in a compact size of 110*40*20mm,
making it easy to install in tight spaces. The package style is
SFP, which stands for Small Form-Factor Pluggable. This means that
you can easily plug and unplug the transceiver from your device
without having to power it down, making it highly convenient for
field technicians.
This Fiber Optic Transceiver comes with a LC connector, which is a
type of optical fiber connector that uses a snap-in locking
mechanism to ensure a secure connection. The LC interface is highly
reliable and is widely used in telecommunications, data centers,
and enterprise networking applications.
Our Fiber Optic Transceiver operates at a wavelength of Tx1550nm
and features a DFB (Distributed Feedback) laser, which provides a
stable and precise output signal. This transceiver is designed for
singlemode fiber optic cable, which is ideal for long-distance data
transmission.
In addition, our Fiber Optic Transceiver also features LC DDM
(Digital Diagnostic Monitoring), which provides real-time
monitoring of the transceiver's operating conditions, such as
temperature, voltage, and optical power levels. This feature is
highly beneficial for network administrators as it allows them to
proactively monitor the health of their network and quickly
identify potential issues.
Our Fiber Optic Transceiver comes with a 1-year warranty, which
provides you with peace of mind knowing that you are covered in
case of any defects or malfunctions.
In summary, our Fiber Optic Transceiver is a high-performance and
reliable solution for your data communication needs. With its
compact size, SFP package style, LC connector, Tx1550nm wavelength,
DFB laser, and LC DDM feature, this transceiver is an excellent
choice for network administrators who demand the best in quality
and performance. So why wait? Order our Fiber Optic Transceiver
today and experience the difference!

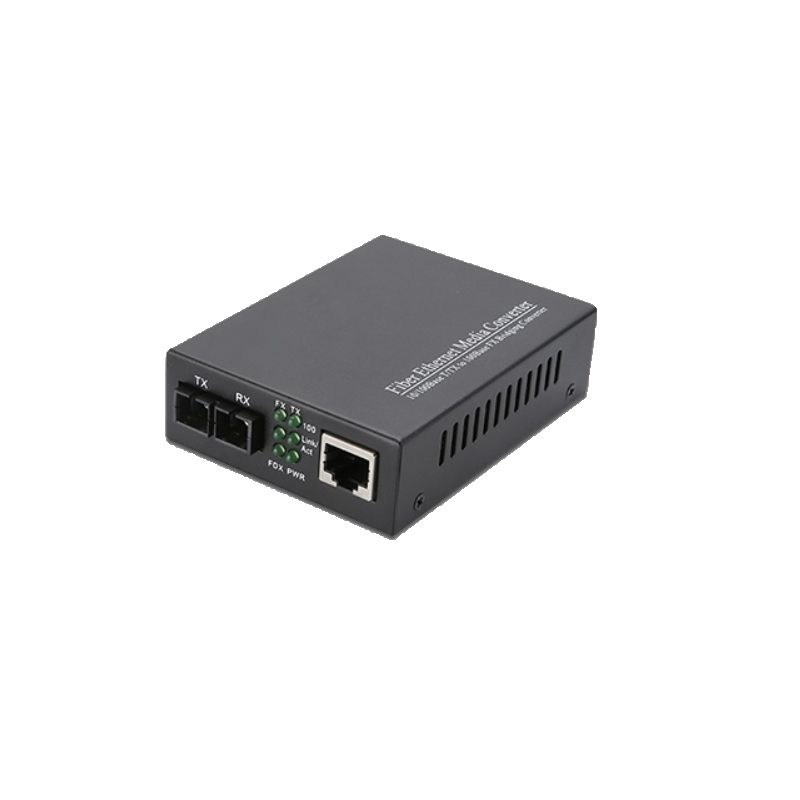

nterface Support: Fiber Interface is SC or SFP Slot. Twisted pair
interface for RJ45
Operating mode: auto-adaptive for full/half duplex mode
Support automatic MDI/MDIX
Individual power supply for 6 LED indicators
Individual LED indicators for fiber port and UTP port status
External DC power and built-in power designs are both available
Relative humidity: 5%- 90%
Operating temperature:
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Storage temperature: -40 ~ +70℃
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | | | | | | |
| Output Opt. Pwr (End of Life) | POUT | -2 | | 3 | dBm | 1 |
| Optical Wavelength | λ | 1270 | 1310 | 1360 | nm | |
| Wavelength Temperature Dependence | | | 0.08 | 0.125 | nm/°C | |
| Spectral Width (-20dB) | σ | | | 3.0 | nm | |
| Optical Extinction Ratio | ER | 10 | | | dB | |
| Sidemode Suppression ratio | SSRmin | 30 | | | dB | |
| Optical Rise/Fall Time | tr/ tf | | 100 | 160 | ps | |
| RIN | RIN | | | -120 | dB/Hz | |
| Transmitter Jitter (peak to peak) | | | | 100 | ps | |
| Receiver | | | | | | |
| Average Rx Sensitivity @ Gigabit Ethernet | RSENS3 | | | -25.0 | dBm | 2 |
| Maximum Input Power | PMAX | -3.0 | | | dBm | |
| Optical Center Wavelength | λC | 1260 | 1310 | 1620 | nm | |
| LOS De -Assert | LOSD | | | -26 | dBm | |
| LOS Assert | LOSA | -40 | | | dBm | |
| LOS Hysteresis | | | 1.0 | | dB | |
| Receiver Jitter Generation @1.25Gbps | | | | 160 | ps | 3 |
Applications:
The Fiber Optic Transceiver is designed with a 1310 wavelength,
making it ideal for single mode transmission. It is equipped with
an LC interface, making it easy to connect to other devices.
Whether it be for data centers, telecommunication networks, or even
security systems, this transceiver is perfect for any scenario that
requires long-distance optical transmission.
The transceiver's long-distance capabilities are especially useful
for large buildings or campuses that require a reliable and
efficient transmission network. With its 60km range, it can easily
connect different areas within a building or campus without
sacrificing speed or quality.
The Fiber Optic Transceiver's compact design allows for easy
installation, making it a great option for those who need to set up
a network quickly and efficiently. Whether you are a small business
owner or a large corporation, this transceiver is an affordable and
effective solution for all your optical transmission needs.
Packing and Shipping:
Product Packaging:
- 1 Fiber Optic Transceiver
- 1 User Manual
Shipping:
- Shipped via standard ground shipping
- Expected delivery time: 5-7 business days
- Shipping cost: $10
FAQ:
Q: What is the brand name of this Fiber Optic Transceiver?
A: The brand name of this Fiber Optic Transceiver is NEW LIGHT.
Q: What is the model number of this Fiber Optic Transceiver?
A: The model number of this Fiber Optic Transceiver is
NLM-GE00-SFP.
Q: Where is this Fiber Optic Transceiver manufactured?
A: This Fiber Optic Transceiver is manufactured in China.
Q: What is the data transfer rate of this Fiber Optic Transceiver?
A: The data transfer rate of this Fiber Optic Transceiver is up to
1.25Gbps.
Q: What is the maximum operating distance of this Fiber Optic
Transceiver?
A: The maximum operating distance of this Fiber Optic Transceiver
is up to 550m.
