Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber
Optic Patch Cord 3meters
The MPO MTP connectors have standard insertion loss and low
insertion loss . There is a little different between two types .
first of all , the color of the connector of low insertion loss is
yellow color , and standard insertion loss of single mode is green
color . If you order the low insertion loss MPO MTP , the color of
connector will be yellow .
second , the insertion loss of low insertion loss MPO MTP can be
less than 0.35dB , but the insertion loss of standard MPO MTP is
less than 0.75dB .
at last , the price of low insertion loss and standard insertion
loss connector is different .
Assembly is built using 24xfibres ferrule interface MPO/MTP®
connectors which can be used directly with CFP/CXP 100G
transceivers or when used together with Transition Modules/ Cables
can provide 100G compatible infrastructure for 40G QSFP+
transceivers.
MPO/MTP® 24xFibres Ferrule Cable Assembly can be used with
24xfibres ferrules MPO/MTP® to LC
module providing 40/100G compatible infrastructure for legacy
non-parallel optics 4/8/10/16G Ethernet/ Fiber
Channels protocols networks.

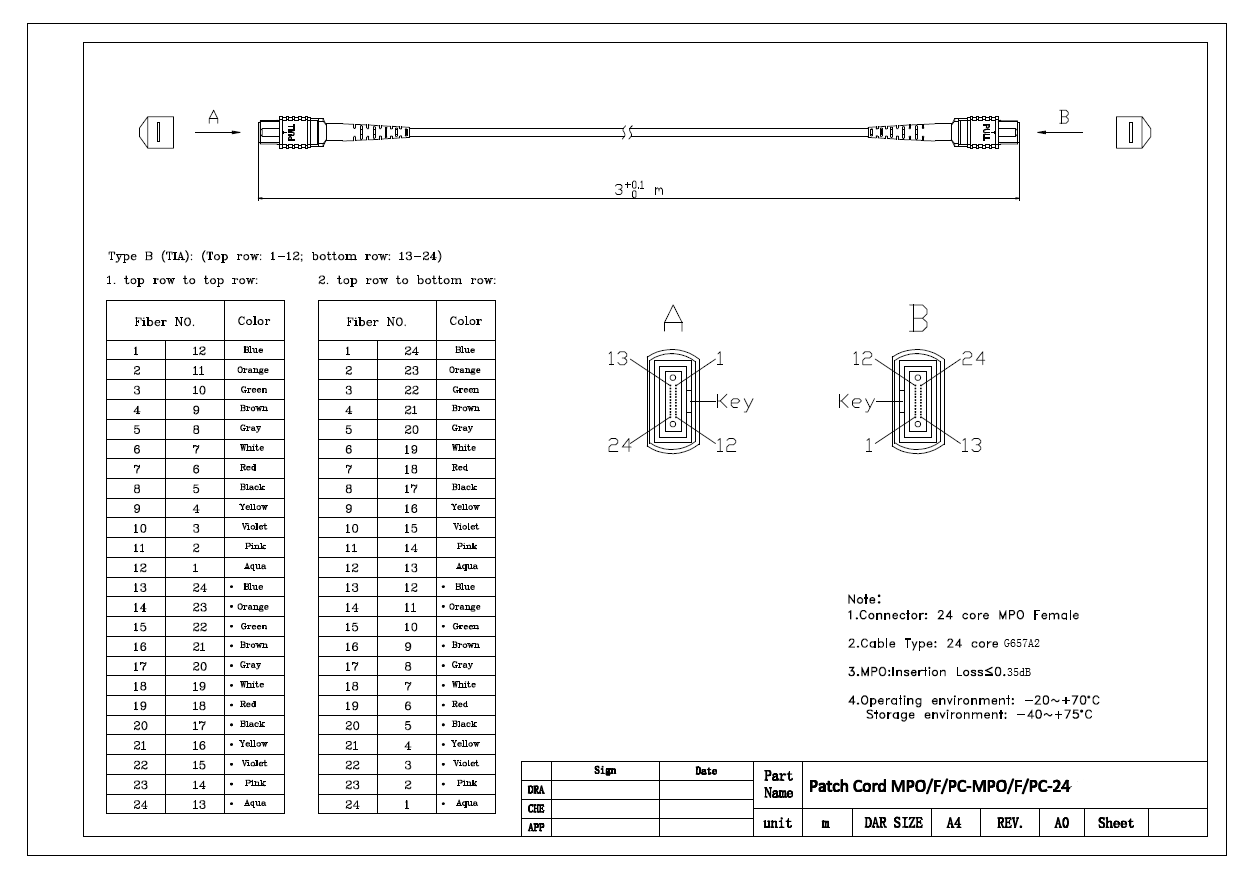

Type B
Technical Parameter
| products name | Low insertion loss 24 core MTP Mpo armored LSZH Material Fiber
Optic Patch Cord 3meters |
| mode type | single mode |
| cable count | 24 core ( can be 4/8/12/16/24/32 core ) |
| core type | G657A2 armored cable ( G652D/G657A1/G657A2/G655) |
| cable color | Blue ( can be customized according to your request ) |
| cable diameter | 3.0 ( can be 3.0 and customized diameter ) |
| patch cord length | 3 meter ( can be customized according to your request ) |
| out jacket material | LSZH ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.35dB |
| return loss | ≥40 dB |
| wave length | 1310/1550 |
| core type | 9/125um |
| connector type | female |
| connector color | Yellow |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity ) |
more connector you can choose
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ /
E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other
diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core
/ 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150
/ OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B
type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber
)
