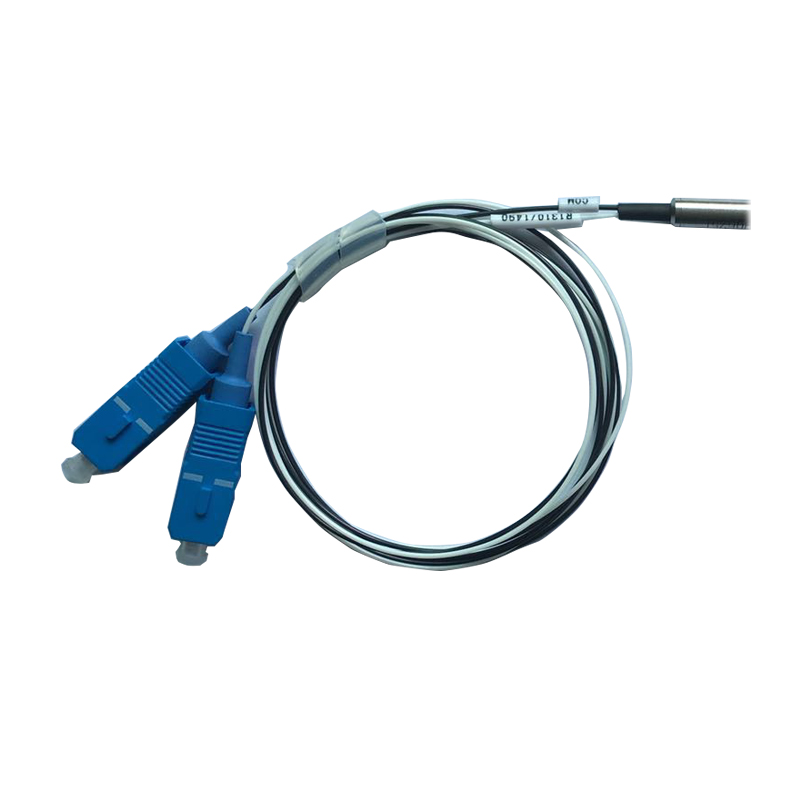

1310nm 1490nm 1550nm fiber optic WDM Optical Filter 1 x 2 steel 0.9 tube

Features

1.Wide Operating Wavelength Range

2.Low insertion Loss

3.Ultra Flat Wide passband

4.High channel Isolation

5.High stability and reliability

6.Epoxy-free on Optical Path

1310nm 1490nm 1550nm Optical Filter 1 x 2 FWDM CWDM DWDM fiber optic WDM utilizes thin film cocating technology and proprietary design of non-flux metal bonding micro optics packing.It provides low insertion loss.high channel isolation,low temperature sensitivity and expoxy free optical path.

Specification

*Insertion loss excluding connector loss.

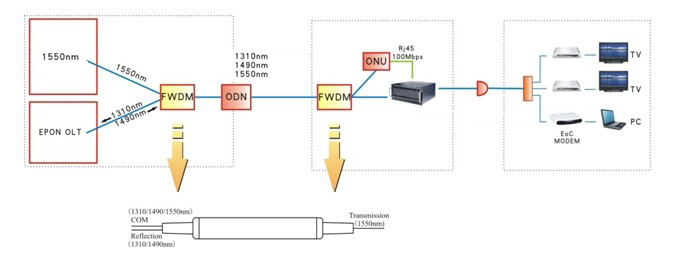

Application

1. WDM system
2. CATV system
3. Telecommunication network system
4. Metro/Access networks
5. EDFA
6. Fiber optic instruments
7. Transmitters and fiber lasers
8. Single direction/Bi-direction transmission
9. Line monitoring
10. FTTX
