16 core white NBDD-FQX16A FTTH Termination box ABS new material
injection molding
1. description :
The 16 core NBDD-FQX16A FTTH Termination box is produced and
developed by our company, and the product’s performance in
accordance with the industry standard requirements of
YD/T2150-2010. It’s mainly used in FTTX access system terminal
link. The box made of high strength ABS new material injection
molding, which has good sealing and aging resistance. In addition,
it can be hanging on the wall outdoors or indoors to install and
use.
2.The main performance product
2.1. The environmental requirements:
The Temperature:-40℃～+60℃
The Humidity:≤95%(+40℃)
The atmospheric pressure:70KPa～108KPa
2.2. The structure and size of box:
2.1.1 The Size:318(H)×265(W)×90(D)mm.
2.2.2 The Weight: 1.1KG
2.2.2 The Structure:the 16 core NBDD-FQX16A FTTH Termination box
mainly consist of the box , shunt bracket, fiber melting tray,
optical cable insert fixed unit, butterfly type cable fixing unit,

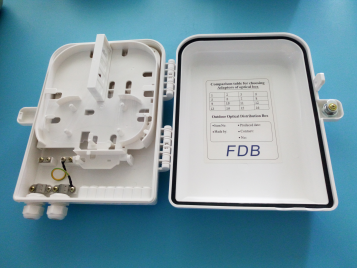

seal components and line-ring components. As shown in the pictures.
3.The installation instruction of the box
3.1. Installation:Wall hanging
3.1.1 According to the backplane mounting hole’s distance, hit 4
mounting holes on the wall, and knock the plastic expansion sleeve.
3.1.2 Fixed the box on the wall with M8 * 40 screws.
3.1.3 Position the upper end of the box into the wall hole, and
then use M8 * 40 screws fix the box on the wall.
3.1.4 Check the box installation, close the door after qualified.
In order to prevent rainwater from entering the box, the box should
be tightened by a key column.
3.1.5 Insert the outdoor optical cable and butterfly type optic
cable according to the construction requirements.
3.2 Hanging rod installation
3.2.1 Remove the box installation backplane and hoop, take the hoop
penetrated into the installation backplane.
3.2.2 Fixed the backboard on the pole through the hoop. In order to
prevent accidents, it’s necessary to check whether the hoop locking
the pole to ensure that the box is firm and reliable, no loose.
3.2.3 The box installation and the optical cable insertion is same
as 3.1.3,3.1.4.
Product configuration list
| Product name | Models | Quantity | Remark |
| Box | NBDD-FQX16A | 1pc | |
| Fiber heat shrinkable sleeve | Ф1.5×60mm | 16pcs | |
| Nylon cable ties | 3×100mm | 4pcs | |
| Expansion bolt | M8×40mm | 4pcs | |
| Key | | 1pc | |
Packing
 | Packing measurement(MM) | 560×350×530 |
| Quality (PCS/Case) | 10 |
Gross weight(KG/Case) Net weight(KG/Case) | 13KG 11KG |
