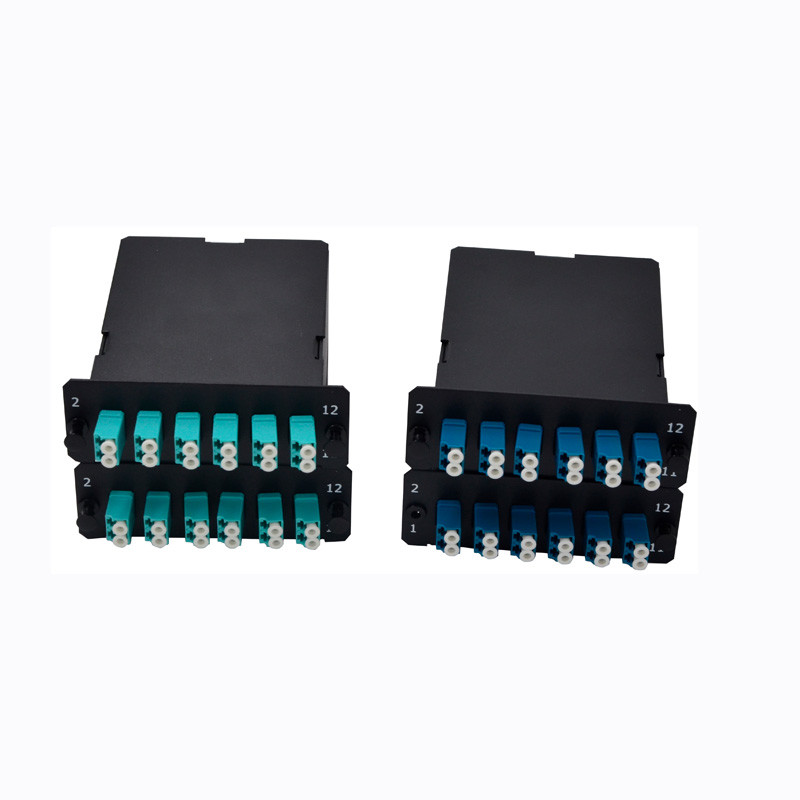

OS2 12fiber low loss insertion mpo mtp connector and LC duplex
adapter fiber cassette
Product description:
New Light OS2 12fiber low loss insertion mpo mtp connector and LC
duplex adapter fiber cassette contain 12 or 24 fibers and are designed for high-density,
high-speed Ethernet networks. Use them to optimize space and reduce
costs in data centers where you need to transmit over multiple
fibers at the same time. A single MTP/MPO cable replaces up to 12
or 24 fiber cables in the equipment rack enabling easier
installations. The most common application is for 10 Gbps, 40 Gbps
and 100 Gbps network connectivity.
New Light MTP/MPO cassettes are all made with high quality Corning fiber
optic cable and are available in variours fiber modes: Single-mode
(9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and
others. These cassettes also have many common fiber optic connector
ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and
ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can
be made with either Male or Female MTP/MPO connectors to suit your
needs.
FHD High Density Series is a versatile solution in multiple sizes
(1U/2U/4U) and styles for building backbones, data centers and
enterprise applications, 1U up to 96 LC fibers.
Product Features:
• High-density modular design, up to 96 fiber in 1U for efficient
utilization.
• Pre-terminated cassette for improved reliability and quick
deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber
links.
• Offered in a wide range of performance and polarity
configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC
standards.
Learn more ,pls link :
https://youtu.be/vq-AZxb1ab4
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties:
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
| |
Polarity Illustration:
In any installation, it is important to ensure that the transmitter
at one end matches the corresponding receiver at the other end. FS
provides a number of intelligent solutions that can help you manage
and optimize your network and its connectivity.
