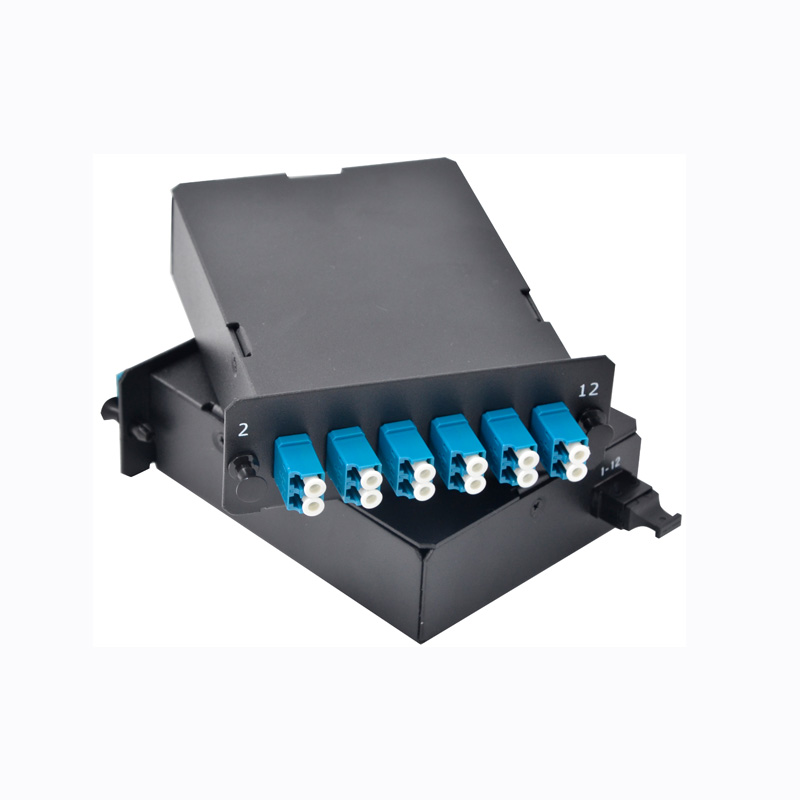

2x MPO-12 to 12x LC Duplex, Type A, 24 Fibers OM3 Multimode FHD MPO
Cassette
Product description:
New Light MPO fiber connectors utilize precision molded MT ferrules, with
metal guide pins and precise housing dimensions to ensure fiber
alignment when mating. The MPO fiber cables are packaged in a
rugged, compact housing for the highest density available for these
applications. MPO loopbacks standard products include a female MPO
interface 12-fiber with 8-fiber (QSFP) option or 100G, singlemode
or multimode versions. Our compact and rugged housing design
provides high stability, reliability, and repeatability.
New Light MTP/MPO cassettes are all made with high quality Corning fiber
optic cable and are available in variours fiber modes: Single-mode
(9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and
others. These cassettes also have many common fiber optic connector
ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and
ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can
be made with either Male or Female MTP/MPO connectors to suit your
needs.
FHD High Density Series is a versatile solution in multiple sizes
(1U/2U/4U) and styles for building backbones, data centers and
enterprise applications, 1U up to 96 LC fibers.
Product Features:
• High-density modular design, up to 96 fiber in 1U for efficient
utilization.
• Pre-terminated cassette for improved reliability and quick
deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber
links.
• Offered in a wide range of performance and polarity
configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC
standards.
Learn more ,pls link :
https://youtu.be/n0NzAOHr10s
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties:
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
| |
Polarity Illustration:
In any installation, it is important to ensure that the transmitter
at one end matches the corresponding receiver at the other end. FS
provides a number of intelligent solutions that can help you manage
and optimize your network and its connectivity.
