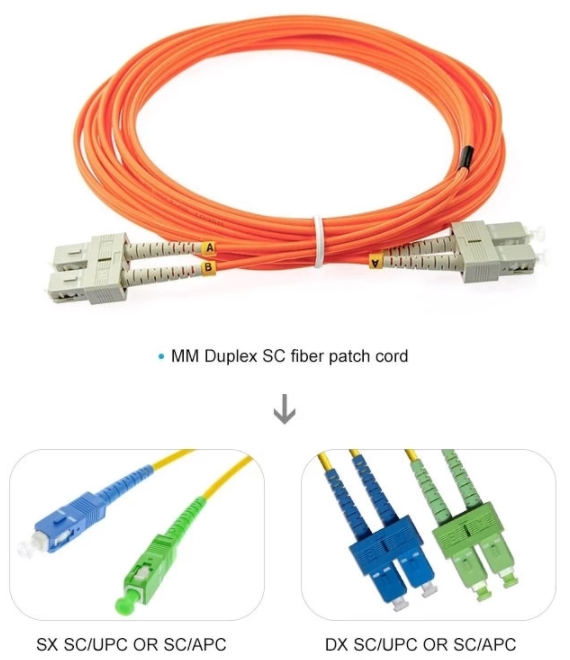

5m fiber patch cord 50/125 multimode fiber duplex fibre optic patch
cord
Description:
New light 5m fiber patch cord 50/125 multimode fiber duplex fibre optic
patch cord is available in both singlemode and multimode versions. A
cost-effective solution that provides high bandwidth and
transmission rates over short distances. This high-quality
Multimode fiber optic patch cable is designed for ethernet
applications. Each connection has great durability and is resistant
to pulls, strains and impacts during installation
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with
two ends adding connectors to connect beam path. Pigtail is a
length of fiber permanently attached connector only at one end.

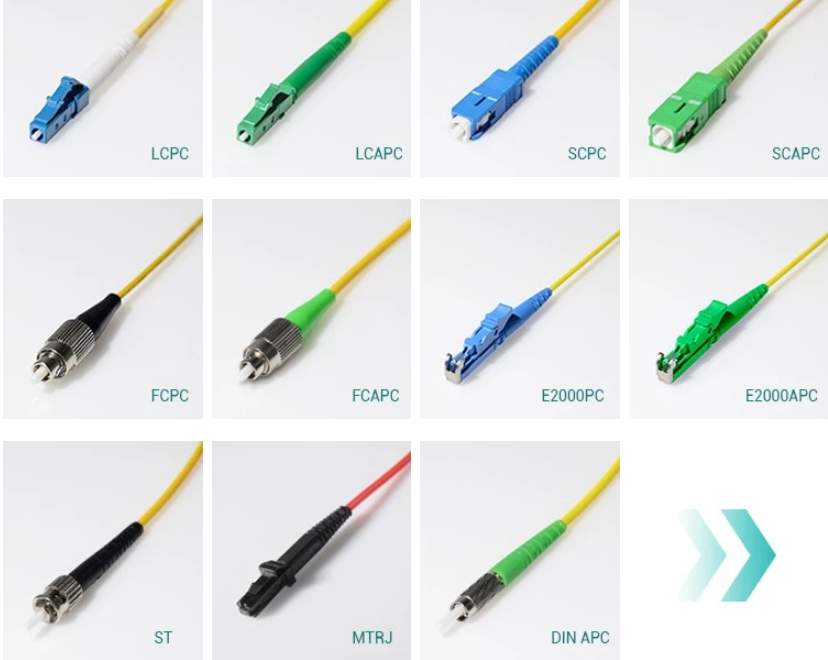

Joinwit patch cords assembled with various types of connectors
(such as FC, SC, ST, LC, MU, MTRJ etc. ) There are three kinds of
polished fiber end-face: PC, UPC and APC. We employ advanced
technique and equipment to manufacture so as to ensure the high
quality of mass production.
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
Type:
* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical
fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core
connector and multi-core connector.
Specification:
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura |
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC,
E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC,
D4/PC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm |
| Cable jacket | PVC, OFNR, LSZH, OFNP |
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m...Customized |
Features
* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
