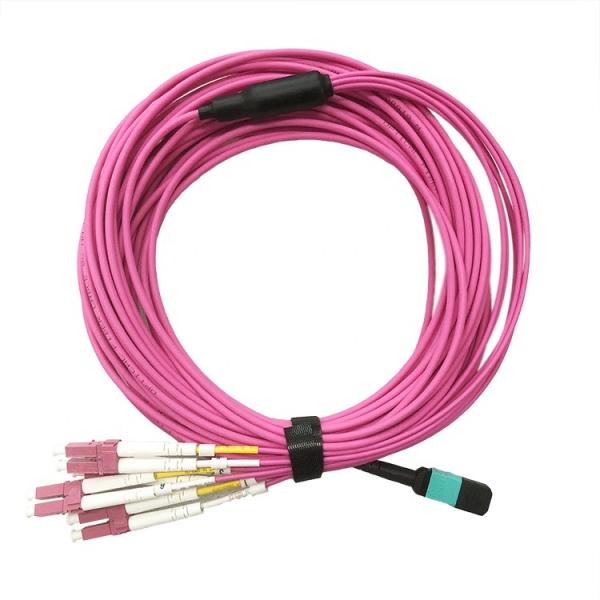

8 Fiber MTP-4LC Duplex 10G OM3 Fiber Optic Harness Fan-out/Breakout
Cable
Applications
1.Data communication network
2.Optical system access network
3.Storage area network fiber channel
4.High density architectures
Features and benefits
1.100% pre-terminated and tested in factory to ensure transfer
performance
2.Rapid configuration and networking, reduce installation time
3.Supports 40G and 100G network applications
4.Jacket material: LSZH, OFNR, OFNP available
5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products
are available
MPO MTP Cable Overview
This fiber patch cord are simplex multi-fiber cable using the
MPO/MTP connector in fiber counts of 4, 8, 12, 24 or 48. They offer
Male and Female MPO/MTP connectors on each end. Available in 4~48
fibers versions as well as multi-mode (62.5/125, 10G OM2/OM3/OM4,
Bend-insensitive fiber, etc.) and single-mode(G652D, G657A1
etc.)fiber types
New Light MTP-MTP Patch cord, a cost-effective alternative to
time-consuming field termination, is designed for high-density
fiber patching in data centers which need space saving and reduce
cable management troubles.
Ps: The MTP connectors are fully compliant with the MPO standards,
achieving higher performance levels when compared to generic MPO
connectors.
MPO MTP Cable Features
1 . US Conec MTP connector, Senko MPO Plus premium connector
2 . OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
3 . 0.35dB Elite low loss MTP/MPO connector as well standard
versions of 0.6/0.75dB
4 . Factory terminated and tested
5 . Allow easy migration from 10GbE to 40GbE or 100GbE
6 . Pulling eyes are provided as an option to protect the fiber
ends during installation
MPO MTP Cable Technical Parameter
| Item | Technical Parameters |
| Connector | MPO/MTP(F or M) | MPO/MTP (F or M) |
| Operation Temperature | -40°C ~ +80°C |
| Storage Temperature | -40°C ~ +85°C |
| Insertion Loss | SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
| Return Loss | SM:≥60dB; MM:≥35dB |
| The MPO end type | Male: with guide pin; Female: without guide pin |
| Fiber count | 8,12&24 fiber |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable |
The three polarity methods Type A, Type B and Type C are used to
guarantee the right bi-directional allocation.
Pakcing
We will pack it by OPP bag and carton box outside . in order to
protect the goods are not damaged when delivery .
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs ,
because the cost will be higher , so that the price will be higher
than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know
your quantity , we will offer our best price for you . Big Quantity
will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most
are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it
difficult to do FOB price . The best way is let us know your
detailed specifications and quantity , we will offer the freight
with products price for your reference .
We have very competitive price logist . If your quantity is big and
there are dozens of carton boxes , we can figure out freight by sea
for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production
, almost closed to dust-free workshop . Imported production
equipment and quality control equipment . Especially MTP Daisi
equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic
cable production , two factories for patch cord , PLC , ODF ,
adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 working days
for 5000 pcs . regular products we are have it in stock . We can
deal with urgent order for you . More informations , you can feel
free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but
only responsible for non-artificial damage . For artificial damage
, we can repare it for you for free ,but freight will be paid by
your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some
packing of different products for your reference . We also can
print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products accept OEM
/ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch
cord , pigtail , we can provide the sample for free . But freight
repaid by your side .
For big value products , we can't offer it for free , sample charge
and freight repaid first , after you placed order , the sample
charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products
name , detailed specifications , quantity . Provide your receive
address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for
you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice
with our bank account .
4. We will arrange the production for you after we received payment
.
5. Before we delivery will confirm the receive information with you
again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term
cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount
, can 50% deposit in advance , 50% balance paid before delivery .
