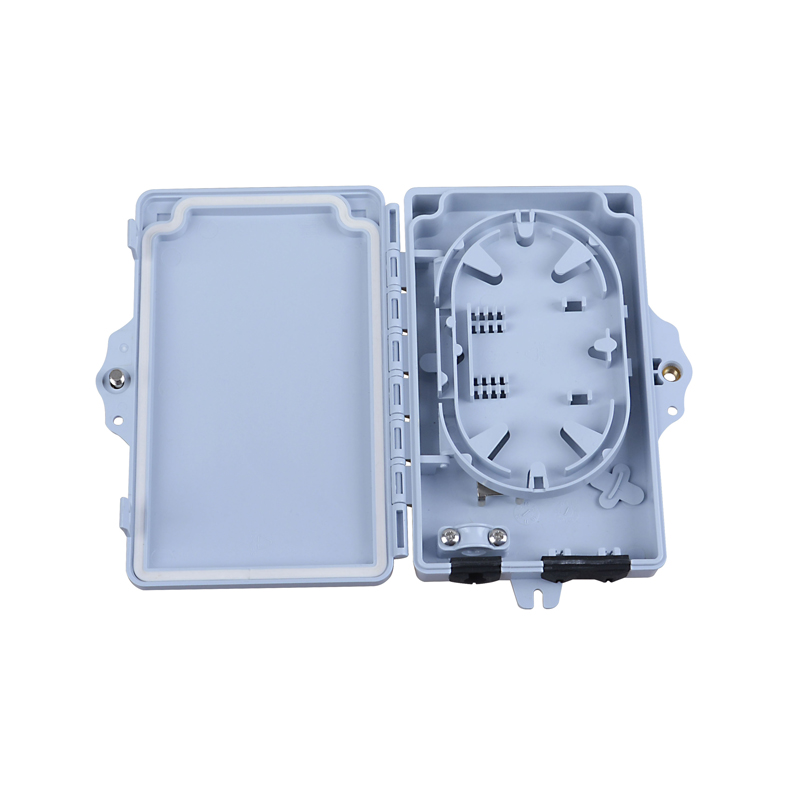

FTTH fiber optic terminal box hold 4 port fiber optic distribution
box
Description
The equipment is used as a termination point for the feeder cable
to connect with drop cable in FTTX communication network system.
The fiber splicing,splitting,distribution can be done in this
box,and meanwhile it provides solid protection and management
for the FTTX network building.
Features:
1.1 This box could be used for wall-mounted and rack-mounted
applications
1.2 The base and cover of the box adopts “self-clip” method, which
is easy and convenient to open and close
1.3 It could be used for adaptors such as SC,FC, etc
1.4 The max capacity is 4 fibers
1.5 Large arc-shaped winding column to avoid the potential damage
risks
1.6 UL94 V1 flame retardance complied (UL94 V0 is available upon
request)
1.7 Multi-function optical fiber socket for a variety of cables and
multi-mode access
1.8 Flexible termination methods: splicing + pigtail, mechanical
splice + pigtail, fast connector on site.
Advantage:
TIA/EIA 568.C, Optical Fiber Cabling Components Standard
IEC61754, Fiber optic connector interfaces Standard
ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications
Infrastructure. )
GR-449-CORE (Generic Requirements and Design Consideration for
Fiber Distributing Frames. )
RoHS (Directive on Restriction of Hazardous Substances. )
Technical Data:
Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.
| Adapter Capacity | 02 Adapters |
| Splice Trays | / |
| Splice Capacity | 02 Splices |
| Ports | 1 Input Port / 4 Output Ports |
| Material | PC/ABS |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 19mm |
| Color | White |
| Port Capacity | 2 ports, each port for 1 cable with max 10mm |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Parameters:
| Model | Capacity | Type | XX: Adapter | XX: Pigtail |
| FFS | 2 | B | SC: SC/UPC | SC: SC/UPC |
| AS: SC/APC | AS: SC/APC |
| LC: LC/UPC | LC: LC/UPC |
| AL: LC/APC | AL: LC/APC |
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock.Or it is
15-30 days if the goods are not in stock, it is according to
quantity.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the
cost of freight.
Q:How about your after-sales service?
A:We offer you 24 hours service phone, 9 hours with mail.
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T
in advance ,balance before shippment.
