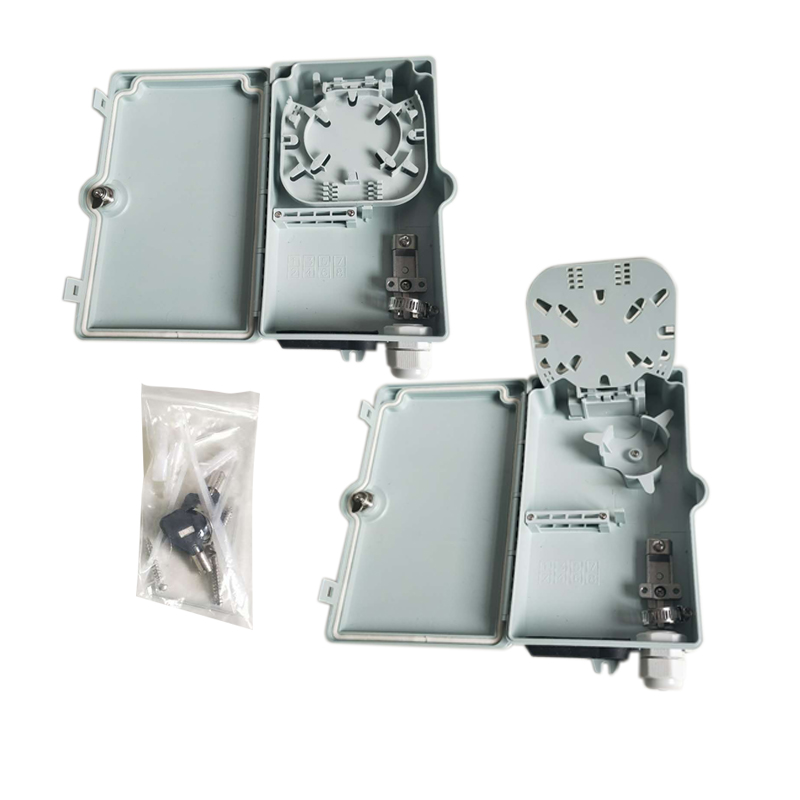

Fiber Wall Socket / Wall Mount 1*4 sc lc PLC Splitter fibre
termination box
Description
Fiber optic fiber optical terminal box,termination box is
applicable PLC Splitter/ coupler to a terminal access links FTTH
access system.
It is especially for connecting and protection for fiber cable for
FTTH .
This fiber optic terminal box applies to the communications room
and various network room wall installation or desktop installation.
FTTH insert optical fiber terminal splitter box, arc, horizontal
type.
Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation
resistance is less than 2*104MΩ/500V(DC);
IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no
less than 3000V(DC)/min, no puncture,
no flashover; U≥3000V
Feature
ABS material used ensures the body strong and light.
Water-proof design for outdoor uses.
Easy installations: Ready for wall mount – installation kits
provided.
Adapter slots used – No screws and tools needed for installing
adapters.
Ready for splitters: designed space for adding splitters.
Space saving! Double-layer design for easier installation and
maintenances:
Lower layer for splitters and over length fiber storage.
Upper layer for splicing, cross-connecting and fiber distribution.
Cable fixing units provided for fixing the outdoor optical cable.
Protection Level: IP65.
Accommodates both cable glands as well as tie-wraps
Lock provided for extra security
Advantage:
TIA/EIA 568.C, Optical Fiber Cabling Components Standard
IEC61754, Fiber optic connector interfaces Standard
ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications
Infrastructure. )
GR-449-CORE (Generic Requirements and Design Consideration for
Fiber Distributing Frames. )
RoHS (Directive on Restriction of Hazardous Substances. )
| Adapter Capacity | 02 Adapters |
| Splice Trays | / |
| Splice Capacity | 02 Splices |
| Ports | 1 Input Port / 4 Output Ports |
| Material | PC/ABS |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 19mm |
| Color | White |
| Port Capacity | 2 ports, each port for 1 cable with max 10mm |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Parameters:
| Model | Capacity | Type | XX: Adapter | XX: Pigtail |
| FFS | 2 | B | SC: SC/UPC | SC: SC/UPC |
| AS: SC/APC | AS: SC/APC |
| LC: LC/UPC | LC: LC/UPC |
| AL: LC/APC | AL: LC/APC |
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock.Or it is
15-30 days if the goods are not in stock, it is according to
quantity.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the
cost of freight.
Q:How about your after-sales service?
A:We offer you 24 hours service phone, 9 hours with mail.
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T
in advance ,balance before shippment.
