Single-Armored Single-Jacket Steel-wire Strength Outdoor Cable
GYXTW
Description

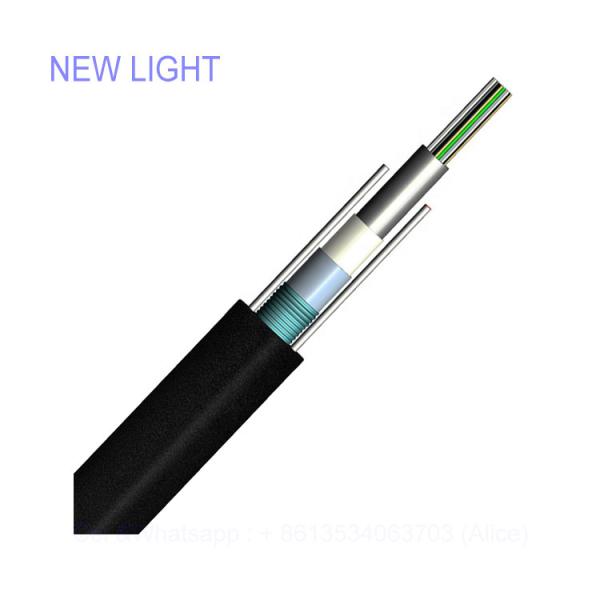

GYXTW single-armored cables feature central loose tube wrapped with
a layer of PSP longitudinally, excellent crush-resistant
performance. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape,
to ensure tensile strength. The cable is completed with a single
polyethylene (PE) sheath. It’s suitable for installation in aerial
or duct environment for communication between bureaus, metropolitan
network, access network and is especially suitable for the
situation where high-density fibers is expected.
GYXTW is an outdoor use optical fiber cable suitable for duct and
aerial applications. We supply GYXTW fiber optic cable from 2 fiber
cores to 24 fiber cores. Both single mode type and multimode types
are available.
Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber
contained central loose tube, copolymer coated steel tape, two
parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber,
detailed specification on your request.
Feature and Application
Low dispersion and attenuation
Light weight, small diameter, easy to lay
Good tensile strength and crush resistance performance
Good moisture-resistance, water blocking, and flexibility
Good mechanical and temperature resistant performance
Access network
Bureaus network
Metropolitan network
Aerial & conduit/duct application
| G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| (+20℃) | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |
| Item | Index |
| Length and packaging | 2000m/3000 plywood reel |
| Packaging details | wooden wheel |
| |
| |
Application
Central Loose Tube Structure for Duct and Aerial Application
With excellent mechanical and temperature resistant performance,
GYXTW outdoor cables are designed to provide high fiber counts with
the flexibility and versatility required for today's most demanding
installations, including aerial or duct environment for
communication between bureaus, metropolitan network, access network
and extreme conditions, like rainy, foggy, etc.
Packaging & Shipping
NEW LIGHT offers standardized packaging of cable, and we can ship
it as soon as possible for adequate inventory. We pack the cable
with roll, then put it into carton. The package provide good
protection for cable. Usually we only attach test report on the out
package of the cable, but we could also mark as your requirements.
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock . Or it is
15-30 days if the goods are not in stock, it is according to
quantity.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the
cost of freight.
Q:How about your after-sales service?
A:We offer you 24 hours service phone, 9 hours with mail.
Q:What is your terms of payment ?
A:Payment<=10000USD, 100% in advance . Payment>=10000USD, 30%
T/T in advance , balance before shippment.
