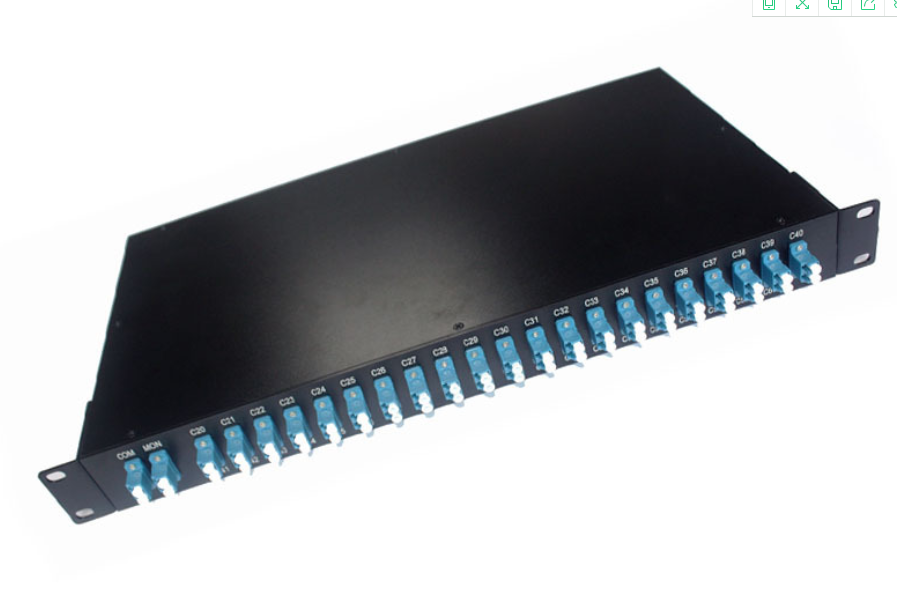

4 8 16 18 channel WDM CWDM DWDM Mux Demux Module, FWDM Splitter
Device
1 . Description
Dense wavelength division multiplexer(DWDM) is based on the
membrane filter technique and proprietary non-flux metal bonding
micro-optics packaging design, within ITU wavelengths to achieve
uplink and downlink. It provides ITU channel center wavelength, low
insertion loss, high channel isolation, low power consumption, wide
passband characteristics, no glue loop, excellent thermal stability
and reliability and so on. In a telecommunications network system,
it can be used for uplink or downlink optical signal.
2.Features
♦Low Insertion Loss
♦High Channel Isolation
♦Optical path epoxy free
♦Excellent thermal stability and reliability
♦Telcordia GR-1221 Compliance and RoHS Environmental Protection
Standard
3.Application
♦DWDM Network
♦Add/Drop System
♦CATV Fiberoptic System
♦Metro/Access Network
♦Fiber Optical Amplifier
Applications
Access networks
Metro WDM systems
Long haul WDM systems
Enterprise networks
Specifications
| Item | Unit | Parameters |
| Channel spacing | GHz | 200 |
| Wavelength range | | C- or L-band ITU channels 186.6 to 196.1 THz |
| Passband | GHz | ≥+/- 33 |
| Transmission passband ripple | dB | ≤0.3 |
| Transmission insertion loss | dB | ≤1.0 |
| Reflection passband ripple | dB | ≤0.2 |
| Reflection insertion loss | dB | ≤0.4 |
| Transmission isolation (adj channel) | dB | ≥30 |
| Transmission isolation (non-adj channel) | dB | ≥50 |
| Reflection isolation | dB | ≥13 |
| Polarization dependent loss | dB | ≤0.2 |
| Polarization mode dispersion | ps | ≤0.2 |
| Directivity | dB | ≥50 |
| Return loss | dB | ≥45 |
| Optical power handling | mW | ≥500 |
| Tensile Load | N | ≥5 |
| Operating temperature range | | -5 to 70 |
| Storage temperature range | | -40 to +85 0C |
| Fiber type | | SMF-28e |
| Package dimension | mm | 5.5 x 34mm |
Note: All the specifications are based on the devices without
connectors, and guaranteed over
wavelength, polarization and temperature.
Dimensions drawing( mm)
Spectral plot (dB)
Ordering information
| Product | Channel Frequency | Tube | Fiber length | Connector |
| 200G | ITU Grid | 1=250um fiber | 1=0.5+/-0.1m | 0=No connector |
| DWDM Filter | In C-band | 2=900um fiber | 2=1.0+/-0.1m | 1=FC/UPC |
| | 3=Others | 3=others | 2=FC/APC |
| | | | 3=SC/UPC |
| | | | 4=SC/APC |
| | | | 5=LC |
