Multi Mode LC SX 0.9mm 2.0mm 3.0mm right angle fiber optic
connector
Fiber optic patch cord is one of most commonly used components in
fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber
optic patch cables. generally there
are two types of fiber optic patch cords: single mode fiber optic
patch cords and multimode fiber optic
patch cords. here the word mode means the transmitting mode of the
fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with
9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or
62.5/125 fiber glass and is orange color.
LC is the short form of Lucent Connector, LC fiber patch cord
connector is a push and latch structure,
with plastic housing and accurate 1.25mm ceramic ferrule. LC type
is a popular kind of small form fiber
optic patch cord which reduce the space and it is widely used for
densely installation.
Optical fiber optic lc connector is a mechanical device designed to
align fiber-optic connectors. It contains the interconnect sleeve,
that holds the two ferrules together.
Fiber optic adapters are flange type in plastic housing; Single
mode adapters are with Ceramic sleeve while multimode fiber
adapters are with bronze sleeve.

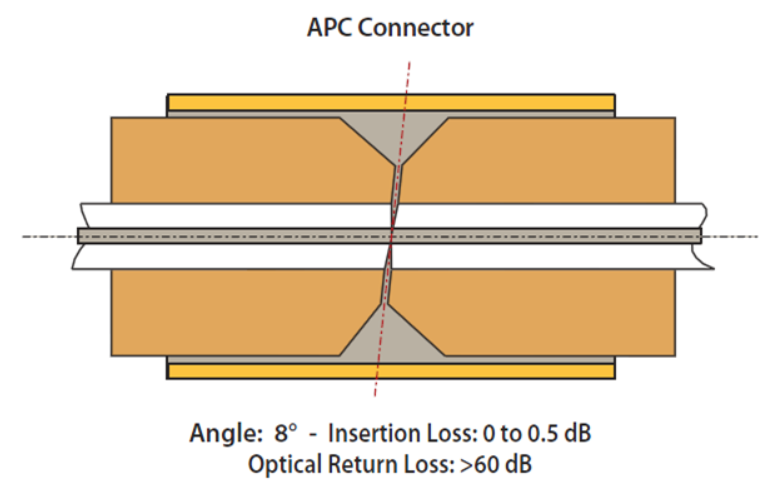

APC Connector is a type of fiber connector that minimizes
backreflection due to a 5° to 15° angle-polish applied to end
faces. Like illustrated in the following picture.
Angle-polished connectors should only be mated to other
angle-polished connectors. Mating to a non-angle polished connector
causes very high insertion loss. Generally angle-polished
connectors have higher insertion loss than good quality straight
physical contact ones.
“Ultra” quality connectors may achieve comparable back reflection
to an angled connector when connected, but an angled connection
maintains low back reflection even when the output end of the fiber
is disconnected .
Angled-polished connections are distinguished visibly by the use of
a green strain relief boot, or a green connector body. The parts
are typically identified by adding “/APC” to the name.
For example, an angled FC connector may be designated FC/APC, an
angled LC connector may be designated LC/APC, etc.
The value of return loss for mated APC connectors in the field will
typically be greater than -65 dB. For a UPC connection, it is
normally -55 dB.
When connectors are unmated—such as unused ports in an FTTP
distribution frame—the return loss for APC connectors is -65 dB or
greater, compared to UPC connectors that will be in the
neighborhood of 14 dB.
Features:
► Complies with IEC 61754-20 and TIA 604-2
► Low insertion loss and back reflection
► Bayonet shaped housing for easy termination
► Nickel plated brass body
► Zirconia ceramic ferrule with high end PC finish
► RoHS, REACH SvHC compliant
Applications:
► Local area networks
► Data processing networks
► Distribution application
► Premises distribution
► Test and laboratory equipmen

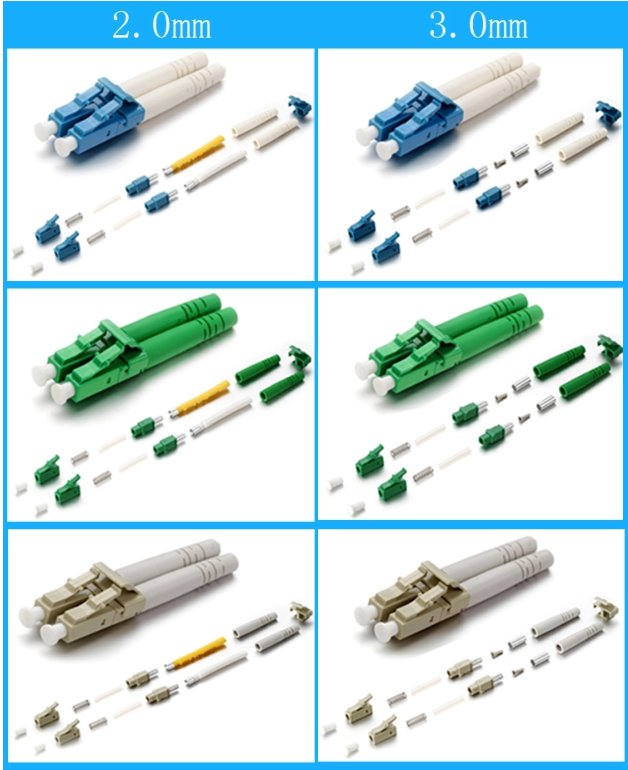

Ease of use
| connector type | single mode / multimode |
| color | blue / Green |
| cable | 0.9/2.0/3.0 |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Parameter
| products name | OEM / ODM 3.0mm Fiber Optic ST Connector For Indoor Distribution
Patch Cord |
| mode type | single mode / multi mode |
| cable diameter | 0.9 /2.0 / 3.0 mm |
| insertion loss | ≤ 0.3dB ( low insertion loss can be ≤ 0.35dB ) |
| return loss | ≥60 dB |
| wave length | 1310/1550 |
| ferrule material | Ceramic |
| operater temperature | -40~ +85℃ |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity )
|
more connector for reference
| Connector type | LC / SC / FC / FC / E2000 / MPO /MTRJ /SMA |
| Mode type | single mode or multimode |
| Cable type | 0.9 / 2.0 / 3.0 mm |
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ /
E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other
diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core
/ 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150
/ OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B
type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber
)
