12 Core Bundle loose tube om3 om4 fiber optic patch cord color code
New Light offers the most complete line of connectors and
factory-terminated cables, from single-fiber jumpers to
high-fiber-count assemblies. As the industry’s leading supplier of
cable assemblies, NewLight’s state-of-the-art manufacturing process
ensures unsurpassed connector performance with products that meet
or exceed all industry standards for reflectance and insertion

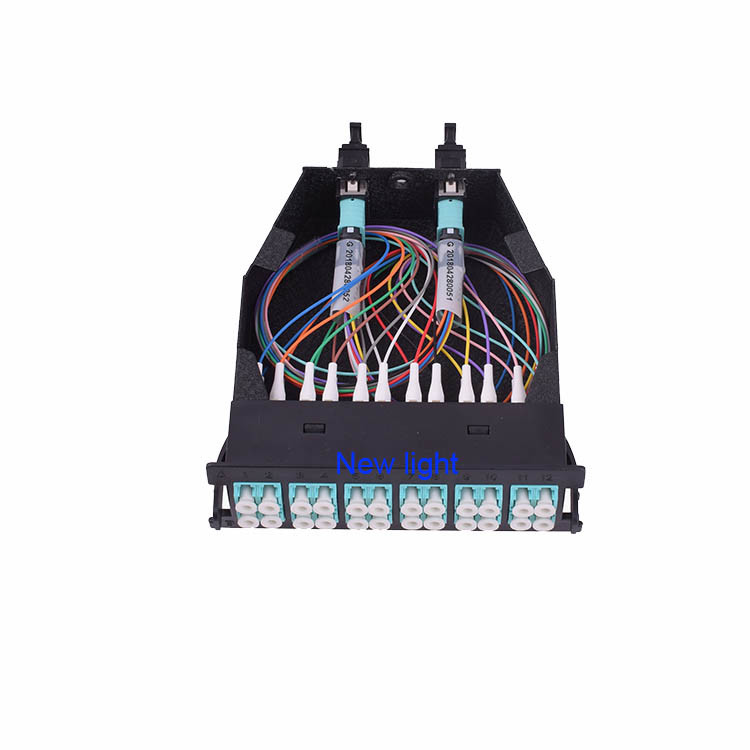

loss.Multifiber cable assemblies are offered with a variety of
cable and connector combinations. Options include LC, SC, FC, ST,
MT-RJ and MTP® connectors. RoHs compliant indoor, outdoor (loose
tube), indoor/outdoor and ribbon cables are available. Additional
detailed furcation images are available in the Cable Assembly
Family Specification Sheet.
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
| Specification | S.M | M.M |
| PC | UPC | APC |
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB |
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - |
| Durability(1000 matings) | <=0.20dB |
| Operating Temperature | -40~+85℃ |
| Storage Temperature | -40~+85℃ |
| Cable Diameter(mm) | 0.9/2.0/3.0 |
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized| Specification | S.M | M.M | | PC | UPC | APC | | Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | | Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | | Durability(1000 matings) | <=0.20dB | | Operating Temperature | -40~+85℃ | | Storage Temperature | -40~+85℃ | | Cable Diameter(mm) | 0.9/2.0/3.0 | | Cable Length(m) | 1M, 2M, 3M, 5M, Customized |
|
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length
Application
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise
installations, data processing networks, LAN/WAN network, and more.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity
)after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea
(according to your requirements ).
