12core multimode simplex loose tube fiber optic pigtail splicing
fiber optic pigtail splicing is a fiber optic cable terminated with a factory-installed
connector on one end, leaving the other end terminated. Hence the
connector side can be linked to equipment and the other side melted
with optical fiber cables. Fiber optic pigtail are utilized to
terminate fiber optic cables via fusion or mechanical splicing.
High-quality pigtail cables, coupled with correct fusion splicing
practices offer the best performance possible for fiber optic cable

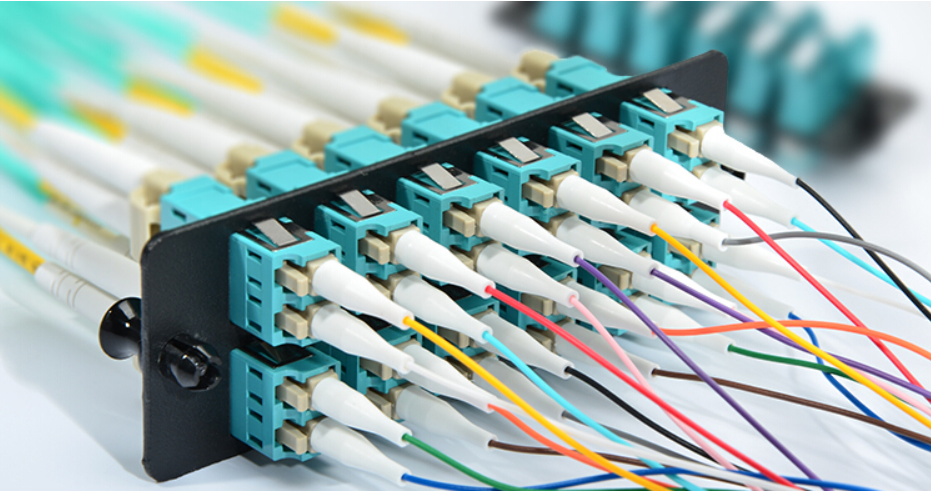

terminations. Fiber optic pigtails are usually found in fiber optic
management equipment like ODF, fiber terminal box and distribution
box.
Features:
Compliant with the standard of IEC
High Return Loss
Low Insertion Loss
Good reliability and stability
Polishing type: PC, UPC, and APC
Various interfaces: SC
Core of cable: 12
Application:
Telecommunication Network
Testing Equipment
Local Ares Network
CATV
High temperature stability
Standard: Telcordia GR-326-CORE
| Specification | S.M | M.M |
| PC | UPC | APC |
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB |
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - |
| Durability(1000 matings) | <=0.20dB |
| Operating Temperature | -40~+85℃ |
| Storage Temperature | -40~+85℃ |
| Cable Diameter(mm) | 0.9/2.0/3.0 |
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized| Specification | S.M | M.M | | PC | UPC | APC | | Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | | Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | | Durability(1000 matings) | <=0.20dB | | Operating Temperature | -40~+85℃ | | Storage Temperature | -40~+85℃ | | Cable Diameter(mm) | 0.9/2.0/3.0 | | Cable Length(m) | 1M, 2M, 3M, 5M, Customized |
|
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length
Multimode fiber (MMF) is a kind of optical fiber mostly used in
communication over short distances, for example, inside a building
or for the campus. Multimode fiber optic cable has a larger core,
typically 50 or 62.5 microns that enables multiple light modes to
be propagated. Because of this, more data can pass through the
multimode fiber core at a given time. The maximum transmission
distance for MMF cable is around 550m at the speed of 10Git/s. It
can transmit farther at lower data rates, such as going about 2km
at 100Mb/s.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity
)after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea
(according to your requirements ).
