10 G LC ST SC 12core Bundle loose buffer multimode fiber pigtail
Multimode fiber is a common choice to achieve 10 Gbit/s speed over
distances required by LAN enterprise and data center applications.
There are several kinds of multimode fiber types available for
high-speed network installations, and each with a different reach
and data-rate capability. With so many options, it can be tough to

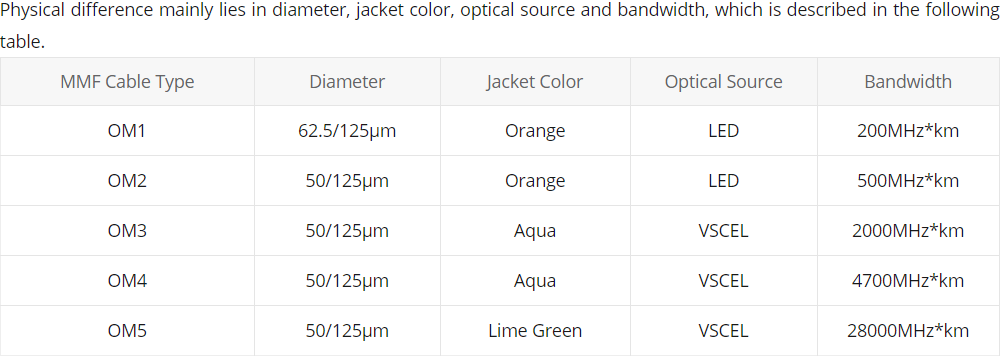

select the most suitable multimode fiber. OM1 vs OM2 vs OM3 vs OM4
vs OM5, which to choose? You may get answer in this article.
Options include LC, SC, FC, ST, MT-RJ and MTP® connectors. RoHs
compliant indoor, outdoor (loose tube), indoor/outdoor and ribbon
cables are available. Additional detailed furcation images are
available in the Cable Assembly Family Specification Sheet.
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
| Specification | S.M | M.M |
| PC | UPC | APC |
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB |
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - |
| Durability(1000 matings) | <=0.20dB |
| Operating Temperature | -40~+85℃ |
| Storage Temperature | -40~+85℃ |
| Cable Diameter(mm) | 0.9/2.0/3.0 |
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized| Specification | S.M | M.M | | PC | UPC | APC | | Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | | Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | | Durability(1000 matings) | <=0.20dB | | Operating Temperature | -40~+85℃ | | Storage Temperature | -40~+85℃ | | Cable Diameter(mm) | 0.9/2.0/3.0 | | Cable Length(m) | 1M, 2M, 3M, 5M, Customized |
|
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length
Multimode fiber (MMF) is a kind of optical fiber mostly used in
communication over short distances, for example, inside a building
or for the campus. Multimode fiber optic cable has a larger core,
typically 50 or 62.5 microns that enables multiple light modes to
be propagated. Because of this, more data can pass through the
multimode fiber core at a given time. The maximum transmission
distance for MMF cable is around 550m at the speed of 10Git/s. It
can transmit farther at lower data rates, such as going about 2km
at 100Mb/s.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity
)after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea
(according to your requirements ).
