Multimode 12colors SC simplex tight buffered fiber optic cable
Tight buffered cables are perfect for indoor use and medium length
LAN/WAN connections as they are the sturdier option. Another
advantage to tight buffered cables is that they are much easier to
install as there is no gel to clean up afterwards and they do not
require a fan out-kit for splicing or termination as you can crimp
connectors directly to each fibre.
Features:
Simplex and Duplex assemblies available
PC, UPC polishing available
Loopback available
Customized lengths upon request
100% tested before shipping
PVC and LSZH outer sheath.
0.9mm, 2.0mm and 3.0mm cable size.
Hybrid patch cords are available upon request
Fan-out available (Ribbon type / bundle type)
Applications:
Telecommunication networks
ODF of optical transmission systems
FTTX FTTH FTTD applications
Data transmission networks
Computer networks (Gigabit Ethernet, SoNet, etc. )
Interconnection of fiber optic transmission equipments
| Specification | S.M | M.M |
| PC | UPC | APC |
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB |
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - |
| Durability(1000 matings) | <=0.20dB |
| Operating Temperature | -40~+85℃ |
| Storage Temperature | -40~+85℃ |
| Cable Diameter(mm) | 0.9/2.0/3.0 |
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized| Specification | S.M | M.M | | PC | UPC | APC | | Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | | Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | | Durability(1000 matings) | <=0.20dB | | Operating Temperature | -40~+85℃ | | Storage Temperature | -40~+85℃ | | Cable Diameter(mm) | 0.9/2.0/3.0 | | Cable Length(m) | 1M, 2M, 3M, 5M, Customized |
|
Pigtails are used for splice applications when terminating outside
plant cable. It’s consists of a connector and a special length

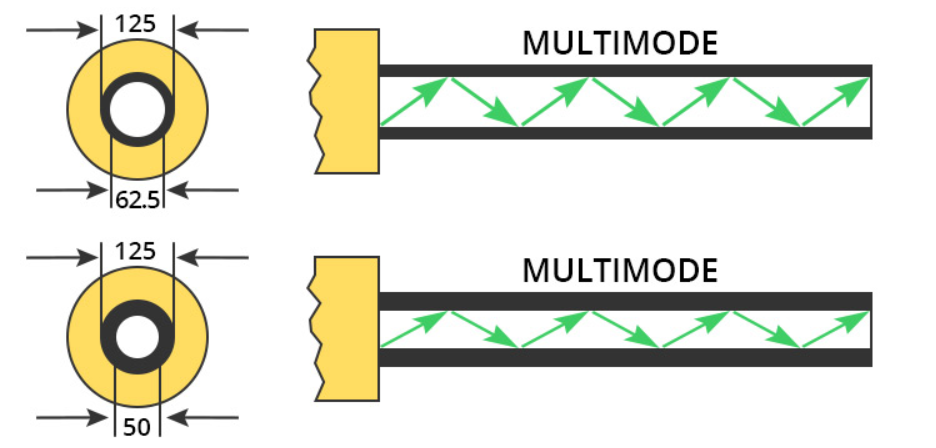

Multimode fiber (MMF) is a kind of optical fiber mostly used in
communication over short distances, for example, inside a building
or for the campus. Multimode fiber optic cable has a larger core,
typically 50 or 62.5 microns that enables multiple light modes to
be propagated. Because of this, more data can pass through the
multimode fiber core at a given time. The maximum transmission
distance for MMF cable is around 550m at the speed of 10Git/s. It
can transmit farther at lower data rates, such as going about 2km
at 100Mb/s.
Fiber Optic Pigtail Splicing: Easy and Fast Fiber Termination
The quality of fiber pigtail is typically high because the
connectorized end is attached in the factory, making it more
accurately than a field-terminated cables. It can be attached to
optical fibers by fusion or mechanical splicing. Given the access
to a fusion splicer, you can splice the pigtail right onto the
cable in a minute or less, which greatly speeds the splicing and
saves significant time and cost spent on field termination. While
for mechanical fiber optic pigtail splicing, it precisely holds a
fiber optic pigtail and fiber patch cord together, the joint could
be temporary or permanent, enabling light to pass from one fiber to
the other. Always ordering fiber pigtail assembly a few feet more
than you’ll need. The extra slack allows for splicing errors to be
corrected. Besides, selecting fiber pigtail assembly with reliable
quality would made the splicing process way easier.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity
)after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea
(according to your requirements ).
